BitCrypt Algorithm

• Image Formats
• Note for stego developers
• Visibility of the Encoded Points
• The Encoding of Points
• The Ciphers
• Memory Dumping and Process Attachment
• The Algorithm Step by Step

The text provided below is designed to explain the reasons for the program and the manner various solutions have been implemented. Please take time to read this description as it is to provide answers to many questions posted by the critical public. Please also read the page titled "Explanation" as it describes the reasons for creation of this application.

About three years ago I decided to create an application that would allow for transmission of secret textual information. As many critics pointed to me later on there is a number of practical problems associated with this idea. Instead of giving up I tried to resolve those problems, or at least address them in some satisfactory manner. Thus, I wrote the program, observed its weaknesses and tried to correct them. Subsequently, I became aware of other problems with the program, so I tried to address those problems in turn. All of that time, I would acknowledge a potential or real problem faced by the application, and I would try to address it. After three years of doing so, I hope that the application is at the reasonably good level, both when the quality, and the security it provides are concerned. On this page below I would like to explain how I tried to address some main problems faced by the application, and also to describe how the application processes the data.

The objective I would like to achieve is to pass the text from point A to point B without anyone suspecting. I would also assume that the sender of information may be under some form of observation, therefore he may not pass the text in the form of obviously encrypted message. For example sending of encrypted e-mail is out of the question as it would instantly expose the sender. I decided that the most practical manner would be to post an image on a website as this is a very common practice and at the same time it does not rise any questions related to security issues.

Please observe, that I am not interested in the purity of the solution. I am not trying to perform any academic studies of the subject. What I would like to achieve is a simple and practical solution that may be used in real life situations.

Image Formats

My first question is related to the choice of image format. One could potentially choose: GIF, Jpg, PNG, and bitmap formats. There are of course many other image formats but I am not interested in them as they are not so often posted on the Net.

• GIF is problematic due to its low depth of encoding. GIF formats are always 8-bit deep or more precisely they use a palette which is 256 long. This means that I have only 256 possible choices for color selection and I would have to use them to encode the text. The same is true about 8-bit deep bitmaps. The program I have written can accept those images, but this setting is provided more for the purpose of experimentation than the real communication. I have stated in the help file that this is not to be used for real life data exchanges

• Jpg has been used by other developers trying to achieve the same solution. The problem with Jpg is twofold:

  • Firstly - Jpg is a loss incurring compression scheme. That means that if I decide to encode my points into an image of this format any change to the compression rate would destroy the information I have placed there.

  • Secondly - Jpg is programmatically determined through the compression process. That means that one may always look into a jpg image and search for breakings of this schema. There are tools on the Net that would do just that. They would analyze the structure of compression and then discover that the process of encoding has modified the expected distribution of information. In other words one may use such a tool to determine that the Jpg has been modified in the process of text encoding. Because of that Jpg is not suitable for the purposes I had in mind.

• PNG is suitable as it is both deep in color depth and may be used in lossless schema. Moreover, it is reasonably often used on the Net to be harmless as far as the suspicion is concerned.

• Bitmap of depth 24 bits is also suitable as it is deep enough to hold the information, and widely used. Moreover, bitmaps are not compressed and therefore they do not contain any prior logic in them. This is very important from my point of view, as it allows me to modify a 24-bit bitmap in any manner I like, and pretend that the image has been simply modified in an image editor (for example the brightness has been increased by the user due to the esthetic reasons and the change has nothing to do with the notion of data hiding)

Thus, I have decided to choose 24-bit bitmaps as the medium to hold data. The bitmap may be posted on the Net directly, or may be converted to PNG in a lossless manner if this is desired by the user. As long as the conversion to and from are lossless the program will decode the data afterwards.

If you are a developer working with stego please note the following.
Many stego developers work with Jpg images. This is because Jpg image format is so commonly used on the Net. The Jpg presents a lot of problems when one tries to hide information in it. The most problematic is that the modification of the image makes the encryption visible and breaks internal structure of the compression schema. I have received a lot of letters suggesting that my program would not be effective due to the problems that naturally occur in stego Jpg images. My point is that none of those problems occur when one works with 24-bit bitmaps. These do not use palette, they do not require any specific internal structure (like for example smoothing of color distribution curve). In fact, a bitmap image may contain any collection of color values, and this never reveals any stego that would be inside it. This is because the image is stored on the disk in exactly the same format as when it is displayed to the user. There is no compression, and no any form of internal processing of the color information displayed by the image.
The only way to prove that a bitmap image contains a stego is to break the encryption key and physically read the hidden text. In all other cases the image might have been modified with any ordinary image editing tool giving the effective distortion of colors.

Visibility of the Encoded Points

This is more complex problem due to a number of reasons. Firstly, if the image contains a well determined modifications anyone who analyzes it may instantly discover the presence of encoding. Secondly, if he does so, he may try to computer-analyze those points and to recreate the original text written into the image. This set of problems had to be approached very carefully in order to address all of the potential pitfalls awaiting here.

What I did is quite simple. I agreed instantly that it is impossible to encode the points without making visible modifications to them. Thus, they will always show as modifications of the original image. However, it does not mean that it can not be done. It just needs to be done differently. What I mean is that instead of modifying just the encoded points one may modify all of the points present in the image. Thus, the application would firstly modify all of the pixels. It would be done randomly, so that each of the modifications would be different and impossible to predict. Subsequently, a selection of points would be chosen and into those points the data written. As long as the randomly introduced modifications are larger in magnitude than the actual data containing ones, the process would hide the encoded text.

To make the process even more consistent, one needs to observe that the random number generators are often imperfect. One can do a simple study on random number generators provided with the programming languages and discover quickly that with large number of points they tend to display patterns. Take a white image and fill quarter of it with black points that have been randomly generated. It is almost instantly obvious that the generator is using trigonometric functions as the black points form a wavy pattern. One can actually do a lot of studies on that subject as some people do so. To resolve this issue I applied two random number generators in turn. Both have slightly different characteristics so that they obscure their respective patterns. This is not the solution that the purists would be proud of but in this application this solution seems to address the problem well enough.

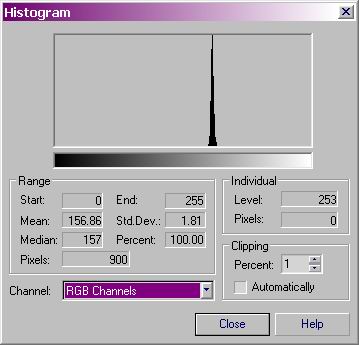

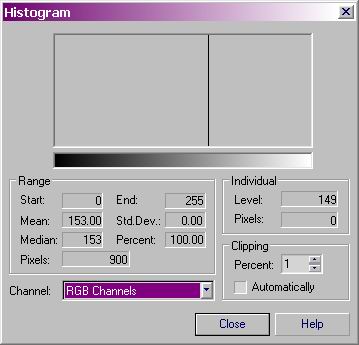

Below I have an example of a monochromatic image original without any encoding, with one letter encoded (that is almost completely modified by the random number generators), and with 3/4 filled with encoded text.

I have used diff function to compare the images on the right with the original image.

In the case of the first image (mainly randomly
modified) the number of unchanged pixels is only 4. All the
others have been modified.

In the second case the number of unchanged points is 17.
Again, if you put a lot of text into the image it is going to be less
modified than if you encode just a few letters.

There is a method of encoding the points with the actual information that does not require extensive modification of the pixels. I will describe the method lower down on this page.

My original worry was with supercomputers applied to the pixels containing the data. In order to address this problem I sprinkled the image with as much of random modification before even attempting to encode the data as possible. In this manner it becomes impossible to find out which points are used for encoding. In fact those points are dependent on the image parameters, for example its size. I use a collection of prime numbers which are selected depending on the key entered by the user. (In version 3.1 the selection of these was based on width and the height of the image). These prime numbers are used as seeds to determine the encoding points. With a different image dimensions a different set of prime numbers would be applied to the problem. In this manner the selected points differ form image to image.

The Encoding of Points

I have found the actual encoding of the points to be the most challenging.

Any printable character may be represented as a number between 0 and 255. In fact the first 31 numbers are not used and anything above 126 is also not printable. The effect is that only 95 characters need to be storable within the encoding. These may be assigned to numbers from 1 to 95 or alike.

Also, a number does not have to be represented in the decimal system. Computers use binary systems, and for the purpose of this application I would represent a number in the four-nary system (if this is the right word for it). Thus, for example the decimal number 95 may be represented as 1 x 64 + 1 x 16 + 3 x 4 + 3. Thus in the four-nary system that would be 1133. Any number that we need to consider would be at most four digits long, and any of those digits would be between 0 and 3. Because of that in order to encode any character we need two pixels (each pixel has three colors) giving us six places to put those digits in.

For example the above number 95 which is represented by 1133 could use two pixels with their respective colors (r g b) (r g b).
Now suppose the original values of those colors would be: (120, 11, 23) (32, 1, 3). Before encoding anything we could normalize those values by 4 giving: (120, 8, 20) (32, 0, 0). What I did here was to remove the reminder after dividing each of the numbers by 4. All I need to do now is to choose any four numbers out of those six and add to them the digits I would like to store. Let me choose the first two and the last two. This would give me: (121, 9, 20) (32, 3, 3).  In fact I would not touch the digits that are not to contain the encoding. That is, if I wanted to use the first two and the last two numbers, then I would leave the remaining two unchanged: (121, 9, 23) (32, 3, 3)

Thus, I started with (120, 11, 23) (32, 1, 3) and ended up with (121, 9, 23) (32, 3, 3) - But look, the last number is not changed even though it contains data equal to 3, and the second number is actually smaller than the original one, even though I have written 1 into it.

My random number generator tries to add values to the pixels. This makes the image slightly brighter. My data encoding normalizes the points to multiplications of four first, in this way it makes the image slightly darker. The effect of this is such that the points containing the data seem to be least modified. What stands out are the points that have been modified randomly.

What remains is the choice of the four places to write those digits into. As seen above I have six color values but I need only four. I use the characters supplied in the key typed by the user to decide what combination of those four to choose. For each subsequent data point I look at the next character in the key. Based on that I choose the schema for storing those four digits. This brings additional level of security, as without the knowledge of the key it is impossible to decide what four colors have been chosen for a given point.

Please observe that the program changes the colors independently from each other. In other words if you begin with a grayscale image then after the encryption processing the image will have slight tint. You could claim that the tint is due to some image editing, like for example noise addition, but it would be better to start with a proper color image.

The Ciphers

There is a number of analytic techniques that may be applied to the program in order to learn about the encoded information. Everybody knows about reverse engineering, but there is a lot more that can be done to that extend. For example one may attach a debugging process to any other and look at the state of the program being analyzed. Moreover, one may look at the memory occupied by the running process and to try to read the information from there. Even more, one may use a debugger to modify the CPU registers while the program is running and in this way overcome any unsatisfied 'if' statements. Also, one could save the memory of the running program to the disk and try to read the information from that (this is commonly called: "the memory dump").

I have tried to address some of those problems by making sure that at any time the memory of the program would not contain the decoded information (it would keep it only if the key has been verified to be correct). However, this approach has obvious limitations. For starters, one may not encode the key into the image as it would be retrievable by the means of one of the above mentioned techniques. Therefore, I had to include strong ciphers in the program's initial processing stage.

I had a look around Internet for some quality cipher implementations. My application is written in Delphi so I looked for the modules written in this language. I downloaded about five, that were free, and contained the source code. After analyzing the first two I rejected them due to various problems with the code. I looked at the "Delphi Encryption Compendium" written by Hagen Reddmann and I liked it. I had a look at the code he has written and it seemed to be very professional. He also provided working examples of his implementation and I found them to be helpful. I also write some testing program and included his cipher module in it so that I could see it in action, and was satisfied as well. Subsequently, I looked for his other work on the Net and found his Prime Number algorithms, and his optimization work. Over all it seemed to me that he is a real professional and knows very well what he is doing. I decided to include his implementation in the program. I also decided not to touch his code. I have a little experience in the field of software modification and I think that the most effective way of breaking the program is to correct something that seems to be a problem. Thus, his module has been used in here without any modification.

The module written by Hagen Reddmann contains more hash and cipher algorithms that I provided to the users. I thought that listing too many would not be productive, therefore I picked those that seemed to me most powerful, and free of trademark constrains.

Memory Dumping and Process Attachment

When you have a running program you may stop it at any moment and then request the operating system to save the current state of the computer memory into the hard drive. This is called 'memory dump' and is provided so that the snapshot of the memory may be analyzed for debugging purposes. If the program contains any important information, like for example the encryption key, then it could be potentially retrieved from the memory dump. It could be a potential problem, as the other party would simply learn about the key and applied it in the next running of the program. There are two simple solutions to this problem:

1. The first one is to remove any important information from the running program whenever it is halted for any reason. For example if the program checks for the validity of the entered key it has to compare it with something written into the image. (a copy of the key?). If this is the case then before issuing a message stating: "This is not the right key" one needs to make sure that the string containing the key read from the image is set to NULL. However, this solution is not good enough. This is due to the fact that a debugging process may be attached to the running program, and the data read from the image, and observed character by character. The debugger would pause the process after each interaction and the observer would note the character read. Then he would allow the process to execute another step, and he would read the next character being decoded. That person would manually override the rejection of the key and step over to the next character. (As I indicated above one may manually set the CPU registers to the values one desires so that the fact that the key entered by the user does not match the key stored in the image would be forcibly overwritten)

2. It is better not to keep the key in the image at all. In that case there is no way to learn about the key as it has not been encoded into the image. To achieve this I implemented the following steps:

   1. When the user presses the "Encrypt" button the program reads the key entered and uses it as a seed in the Hash algorithm. Therefore the string generated by the Hash is both encryption key and the Hash type dependent

   2. Then I make sure that the string generated by the hash algorithm is at least ten characters long. To achieve this I either append the string to itself or add some characters at the end. My experience tells me that the hash string is always longer than ten characters. I do this step anyway.

   3. Next the program retrieves the first ten characters from the string thus created.

   4. These ten characters are encoded into the image as the signature of the key entered by the user

   This method is much more safe and efficient than the previous one. Firstly, the key as such is not stored in the image. Secondly, only a subset of the generated string is stored. This prevents anyone from learning from that string about the original encryption key (if that was possible at all). Lastly, I have total control over the length of the string written into the image and representing information related to the encryption key. Even if the key is very long, only ten characters would be encoded into the image. That saves space.

   One may ask if it is unique enough? Any character present in the above string is a printable one. That makes almost 100 characters. Having ten of them in the string results in 10 to power of 20  combinations. From the practical point of view for any two different encryption keys the stings should be different.

   What the program does when decoding, is to look at the above string, and compares it with the string generated from the encryption key entered by the user. If those two match then the program proceeds to the next stage, that is it attempts to decode the actual message. If not, then an error message is presented to the user, and the program pauses. At this stage there is no other information decoded so even a memory dump would not reveal something that is not there at all.

   However, someone could try to make the program to go forward and to attempt to read the encoding anyway. As indicated above it could be done by forcibly overriding the registers in the CPU and proceeding even though the encryption key is not known.

   To overcome this problem the actual encoding contains the text that has been processed by the cipher, and each of the points has been written with the schema depending on the actual key entered by the user. This could be presented with an example:

   Encryption key	abcde
   The first position determined by the first letter of the encryption key, the index of the current character, all shifted by a prime number. Then modulo 360	index = 97;  reminder(97, 360) = 97
   That gives the 97th combination of the encoding schema In this case the number 1133 which is the representation of 95 would be written in the following manner: ( red , green , blue  ) ( red , green , blue ) (  0  ,   1   ,   2   ) (  3  ,   4   ,   5  ) ( pos4, pos1  , unused) ( pos2, unused, pos3 ) (  3  ,   1   , unused) (  1  , unused,   3  ) giving for example: ( 16+3,  80+1 ,   73  ) ( 28+1,   171 , 88+3 )	97:begin     pos1 := 1;     pos2 := 3;     pos3 := 5;     pos4 := 0;     pos5 := 4; //unused     pos6 := 2; //unused end;
   The next position determined by the next letter of the encryption key, the index of the current character, all shifted by a prime number. Then modulo 360	index = 568; reminder(568, 360) = 208
   That gives the 208th combination of the encoding schema In this case the program would use the following color places: (  red , green , blue  ) ( red , green , blue ) (   0  ,   1   ,   2   ) (  3  ,   4   ,   5  ) (unused, pos1  , unused) ( pos4, pos2  , pos3 ) (unused,   1   , unused) (  3  ,   1   ,   3  ) giving for example: (  143  , 8+1  , 177   ) ( 12+3, 64+1  , 32+3 )	208:begin     pos1 := 1;     pos2 := 4;     pos3 := 5;     pos4 := 3;     pos5 := 0; //unused     pos6 := 2; //unused end;
   The above numbers would be added to the normalized pixel values of the chosen points. Please observe that the unused points are not normalized to multiplications of 4. Moreover, there is 25% probability that the act of data encoding leaves the randomly modified color value unchanged.

As you can see from the above I have 360 encoding schemas. For each of the points the program reads the subsequent letter from the encryption key specified by the user, and based on that, it decides which  schema to use. When the key is exhausted it starts from the beginning of the key again. At this stage, the information being written into the image is encrypted with the cipher selected by the user. Therefore, just by stepping through the executing program, it is impossible to guess which schema has been used.

This is the second place where I apply the same approach. Namely, in order to use a supercomputer to decrypt the information from a string, one needs to have a reasonably clean encrypted string to start with. That is, one would like to have a string which is encrypted, and nothing else, and then to brake that encryption by the means of computer calculation. If you have a string of characters with only 10% of it representing the actual encryption, and the rest being just a collection of random characters, the computer would not be able to decide which portion of the data represents the actual encryption and which is to be removed as being just noise. I think a bit of my physics background comes into this. In experimental physics one is often presented with the problem of retrieving the signal from the underlining background noise. In this case, what I have done is to increase the level of the underlying noise. I have done it twice, firstly by adding the random number generators, and secondly here, by mixing the encoding schemas with random color variations naturally occurring in any colored image. By this stage, the level of underlying noise should be strong enough to obscure any signal that is actually present in the sample. As I indicated at the beginning of this page, I am not after making the pure mathematicians happy, but rather, after finding a practical solution to a practical problem.

The Algorithm Step by Step

I would like to repeat the information provided above placing it in a step by step scenario, implemented by the program. Hopefully, it will be clear to the reader what the program does.

Encoding

Decoding
